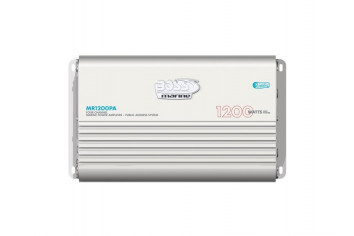

MR1200PA

Описание

Amplifier Class

• Class A/B
• Technology: MOSFET
• Number of Output Channels: 4

Max Power Ratings

• Total Power: 1200 Watts
• Max Bridged Power @ 4 Ohms: 600 Watts x 2
• Max Power @ 2 Ohms: 300 Watts x 4

RMS Power Ratings

• RMS Power @ 4 Ohms: 150 Watts x 4

Details

• Frequency Response: 6 to 50000 Hz
• Total Harmonic Distortion (THD) @ RMS Output: 0.01%
• Minimum Speaker Impedance in Bridged Mode: 4 Ohms
• Signal-to-Noise Ratio (SNR): 90 dB
• Minimum Speaker Impedance: 2 Ohms
• Variable Low Pass Crossover: 40 to 150 Hz
• Dimensions: 2.07" x 12.72" x 7.32"

Features

• Bridgeable
• This amplifier is designed with a built-in PA system, so wake tower speakers or other stereo speakers can be used to make announcements. When you key the microphone the audio source is muted and your voice comes out over the speakers.
• Soft Turn-On Circuit
• Feature a unique rubber door which tightly seals all control panel openings when not in use.
• Fully Marinized
• It uses inline weatherproof connectors for all input and output connections
• Thermal Overload & Speaker's Short Protection
• Remote Subwoofer Level Control
• Tri-Mode Operation
• Chanel 1-4 Mix / Chanel 5 Input
• Power & Protection LEDs
• Number of RCA Line Output: 4
• Input Sensitivity Selector
